Takeoff tutorial

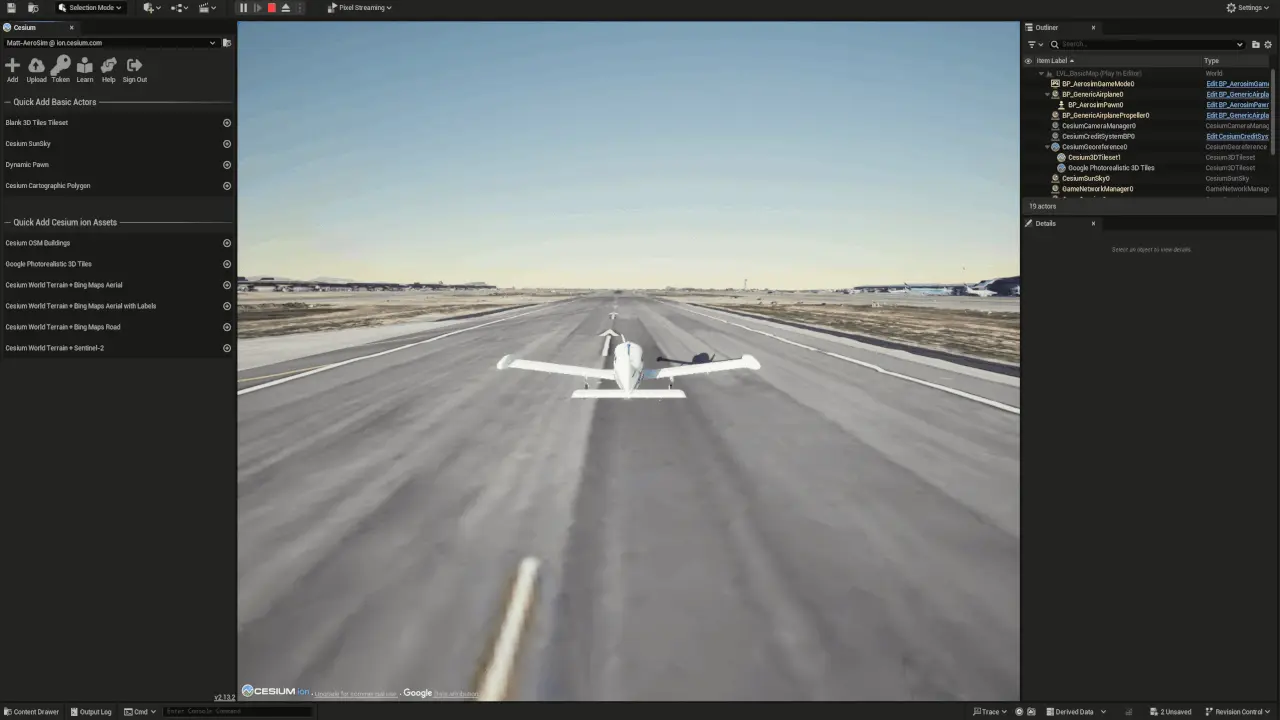

This tutorial demonstrates how to set up a basic flight dynamics model with JSBSim and set up a takeoff simulation at an airport of your choice.
In this tutorial you will learn to:
- Choose an airport on Google maps and retrieve the geospatial coordinates and runway heading
- Set up a simple flight dynamics model with JSBSim encapsulated in an FMU
- Set up AeroSim to simulate a takeoff from the chosen runway
- Set up the script and configuration
- Choose and airport
- Set up a JSBSim flight dynamics module in an FMU
- Imports
- Variables
- Initialization
- Translation of JSBSim data to AeroSim types
- Execute a simple takeoff procedure
- Configuration file
- Run the script
Set up the script and configuration
Open a new Python file named run_takeoff_tutorial.py to launch the simulation:
from aerosim import AeroSim
json_config_file = "sim_config_takeoff_tutorial.json"
aerosim = AeroSim()
aerosim.run(json_config_file)
try:
input("Simulation is running. Press any key to stop...")
except KeyboardInterrupt:
print("Simulation stopped.")
finally:
aerosim.stop()
Open a JSON file named sim_config_takeoff_tutorial.json for the configuration and add the skeleton structure:
{
"description": "Takeoff tutorial.",
"clock": {
"step_size_ms": 20,
"pace_1x_scale": true
},
"orchestrator": {
"sync_topics": []
},
"world": {
"update_interval_ms": 20,
"origin": {
"latitude": 0.0,
"longitude": 0.0,
"altitude": 0.0
},
"actors": [],
"sensor_setup": []
},
"renderers": [
{
"renderer_id": "0",
"role": "primary",
"sensors": []
}
],
"fmu_models": []
}
Choose an airport
Firstly, we will choose an airport and record the latitude and longitude of the start and end of the runway. Click once with the left mouse button and then record the latitude and longitude given by the Google Maps user interface:
For this tutorial, we have chosen the runway at El Prat Airport in Barcelona, with the following runway coordinates:
- Start: 41.293357, 2.067602
- End: 41.305589, 2.103319
Enter the data into the SunEarthTools website to calculate the heading of the runway. We will use the coordinates of the runway start to initialize the simulation in the configuration file, in the origin field of the world section:
...
"world": {
"origin": {
"latitude": 41.293357,
"longitude": 2.067602,
"altitude": 0.0
},
...
Set up a JSBSim flight dynamics module in an FMU
We will set up a simple flight dynamics model for a small fixed-wing aircraft in an FMU. Open a new Python file named takeoff_fmu.py.
Imports
Firstly, let's import the external libraries and AeroSim components that we will need:
from aerosim_core import (
feet_to_meters,
register_fmu3_var,
register_fmu3_param,
lla_to_ned,
)
from aerosim_data import types as aerosim_types
from aerosim_data import dict_to_namespace
import os
import numpy as np
import math
import jsbsim
from scipy.spatial.transform import Rotation
from pythonfmu3 import Fmi3Slave
Variables
Next, we will inherit Fmi3Slave from PythonFMU3 and set up the instance variables and declare FMU variables. We add time as an independent variable and a vehicle_state variable derived from AeroSim types so that we can communicate the vehicle state to the renderer. Not that we also declare FMU parameters to allow us to specify the origin latitude, longitude and initial heading from the configuration file.
...
class takeoff_fmu(Fmi3Slave):
def __init__(self, **kwargs):
super().__init__(**kwargs)
self.jsbsim = None
self.orig_lat = 0.0
self.orig_lon = 0.0
self.init_heading = 0
register_fmu3_param(self, "orig_lat")
register_fmu3_param(self, "orig_lon")
register_fmu3_param(self, "init_heading")
# FMU 3.0 requires a time variable set with independent causality
self.time = 0.0
register_fmu3_var(self, "time", causality="independent")
# Define Aerosim interface output variables
self.vehicle_state = dict_to_namespace(aerosim_types.VehicleState().to_dict())
register_fmu3_var(self, "vehicle_state", causality="output")
...
Initialization
Now in the enter_initialization_mode method, we will initialize JSBSim with the Cessna 172r model. We set initial conditions by targeting the ic/ prefix of JSBSim's variable identifiers. Note that we set the altitude above ground level ic/h-agl-ft to zero to place the aircraft on the runway, we also set the initial velocity to zero and the latitude and longitude to that of the start of the chosen airport runway. Finally, we configure the aicraft for takeoff by setting the engine, brake and flaps parameters.
def enter_initialization_mode(self):
self.jsbsim = jsbsim.FGFDMExec(jsbsim.get_default_root_dir())
self.jsbsim.load_model('c172r')
self.jsbsim['ic/h-sl-ft'] = 0 # Initial altitude (Sea Level)
self.jsbsim['ic/u-fps'] = 0 # Initial velocity (Stationary)
self.jsbsim['ic/vc-rad_sec'] = 0 # No initial pitch rotation
self.jsbsim['ic/h-agl-ft'] = 4.43 # Wheels might be below ground, might want to let aircraft drop
self.jsbsim['ic/lat-geod-deg'] = self.orig_lat # Approximate latitude
self.jsbsim['ic/long-gc-deg'] = self.orig_lon # Approximate longitude
self.jsbsim['ic/psi-true-deg'] = self.init_heading # Facing East
self.jsbsim['ic/gamma-deg'] = 0 # No initial climb angle
self.jsbsim.run_ic() # Apply initial conditions
# Start the engine
self.jsbsim[f"fcs/mixture-cmd-norm"] = 1.0
self.jsbsim[f"fcs/advance-cmd-norm"] = 1.0
self.jsbsim[f"propulsion/magneto_cmd"] = 3
self.jsbsim[f"propulsion/starter_cmd"] = 1
# Release the brakes and set flaps for takeoff
self.jsbsim["fcs/center-brake-cmd-norm"] = 0
self.jsbsim["fcs/left-brake-cmd-norm"] = 0
self.jsbsim["fcs/right-brake-cmd-norm"] = 0
self.jsbsim["fcs/flap-pos-deg"] = 25
Translation of JSBSim data to AeroSim types
In order for the FMU to send data to the renderer in the appropriate format to control the aircraft's transform, we need to convert from JSBSim output data into the AeroSim vehicle_state datatype using the following class method:
...
def set_outputs_to_aerosim(self):
if self.jsbsim is None:
return
# Set timestamp and frame_id
timestamp = aerosim_types.TimeStamp.from_sec(self.time)
self.vehicle_state.state.pose.header.stamp.sec = timestamp.sec
self.vehicle_state.state.pose.header.stamp.nanosec = timestamp.nanosec
self.vehicle_state.state.pose.header.frame_id = "world_ned"
# Convert from Latitude, Longitude, Altitude to North, East, Down.
ned = lla_to_ned(
self.jsbsim["position/lat-geod-deg"],
self.jsbsim["position/long-gc-deg"],
self.jsbsim["position/h-sl-meters"],
self.orig_lat,
self.orig_lon,
0.0, # Use zero altitude as the origin for NED frame to output height as h-sl-meters
)
# Set position using NED coordinates
self.vehicle_state.state.pose.position.x = ned[0]
self.vehicle_state.state.pose.position.y = ned[1]
self.vehicle_state.state.pose.position.z = ned[2]
# Convert roll, pitch, yaw from JSBSim to quaternion and
# set orientation
roll = self.jsbsim["attitude/phi-rad"]
pitch = self.jsbsim["attitude/theta-rad"]
yaw = self.jsbsim["attitude/psi-rad"]
two_pi = 2.0 * math.pi
yaw = (yaw + two_pi) % two_pi # Convert to 0-2pi range
rotation = Rotation.from_euler("zyx", [roll, pitch, yaw])
q_w, q_x, q_y, q_z = rotation.as_quat(scalar_first=True)
self.vehicle_state.state.pose.orientation.w = q_w
self.vehicle_state.state.pose.orientation.x = q_x
self.vehicle_state.state.pose.orientation.y = q_y
self.vehicle_state.state.pose.orientation.z = q_z
# Set linear velocity
self.vehicle_state.velocity.x = feet_to_meters(self.jsbsim["velocities/u-fps"])
self.vehicle_state.velocity.y = feet_to_meters(self.jsbsim["velocities/v-fps"])
self.vehicle_state.velocity.z = feet_to_meters(self.jsbsim["velocities/w-fps"])
# Set angular velocity
self.vehicle_state.angular_velocity.x = self.jsbsim["velocities/p-rad_sec"]
self.vehicle_state.angular_velocity.y = self.jsbsim["velocities/q-rad_sec"]
self.vehicle_state.angular_velocity.z = self.jsbsim["velocities/r-rad_sec"]
# Set linear acceleration
self.vehicle_state.acceleration.x = feet_to_meters(
self.jsbsim["accelerations/udot-ft_sec2"]
)
self.vehicle_state.acceleration.y = feet_to_meters(
self.jsbsim["accelerations/vdot-ft_sec2"]
)
self.vehicle_state.acceleration.z = feet_to_meters(
self.jsbsim["accelerations/wdot-ft_sec2"]
)
# Set angular acceleration
self.vehicle_state.angular_acceleration.x = self.jsbsim[
"accelerations/pdot-rad_sec2"
]
self.vehicle_state.angular_acceleration.y = self.jsbsim[
"accelerations/qdot-rad_sec2"
]
self.vehicle_state.angular_acceleration.z = self.jsbsim[
"accelerations/rdot-rad_sec2"
]
...
Altitude hold
We need a simple controller utility function to target a specified altitude.
...
def hold_altitude(self, target_altitude, target_speed):
# # PID Controller Parameters
Kp = 0.005 # Proportional gain
Kp_throttle = 0.01 # Proportional gain
Ki = 0.0001 # Integral gain
Kd = 0.01 # Derivative gain
current_altitude = self.jsbsim['position/h-agl-ft']
current_speed = self.jsbsim['velocities/vc-kts']
# Compute altitude error
altitude_error = target_altitude - current_altitude
# Adjust elevator
elevator_command = Kp * altitude_error
elevator_command = max(-0.1, min(0.1, elevator_command))
self.jsbsim['fcs/elevator-cmd-norm'] = - elevator_command
# Adjust throttle based on airspeed
speed_error = target_speed - current_speed
throttle_command = 0.75 + Kp_throttle * speed_error # Base throttle + correction
throttle_command = max(0, min(1, throttle_command)) # Limit between 0 and 1
self.jsbsim['fcs/throttle-cmd-norm'] = throttle_command
...
Execute a simple takeoff procedure in the do_step(...) method
In the do step method, we will set the throttle to full power which will start moving the aircraft down the runway. After 30 seconds, once the aircraft has gathered enough speed, we will apply a command to raise the elevators, raising the nose and lifting the aircraft off the ground. We also apply small aileron control commands to counter any roll that occurs, to keep the wings level during takeoff and flight.
def do_step(self, current_time: float, step_size: float) -> bool:
# Do time step calcs
step_ok = True
end_time = current_time + step_size
self.time = self.jsbsim.get_sim_time()
self.jsbsim['fcs/throttle-cmd-norm'] = 1.0
# Keep the wings level
self.jsbsim['fcs/aileron-cmd-norm'] = - 5.0 * self.jsbsim['attitude/roll-rad']
if self.jsbsim['position/h-agl-ft'] > 50:
# Above 50 feet, hold altitude
self.hold_altitude(100, 80)
elif self.jsbsim['velocities/vc-kts'] > 65:
# Once takeoff speed is reached, rotate
self.jsbsim["fcs/elevator-cmd-norm"] = -0.3
self.jsbsim.run()
print(f"JSB Time: {self.jsbsim.get_sim_time():.2f},
Vcal: {self.jsbsim['velocities/vc-kts']:.2f},
Alt: {self.jsbsim['position/h-agl-ft']:.2f} ft,
Throttle: {self.jsbsim['fcs/throttle-cmd-norm'] :.2f},
Elv: {self.jsbsim['fcs/elevator-cmd-norm'] :.2f}")
# Set the vehicle_state variable
self.set_outputs_to_aerosim()
return True
Lastly, build the FMU using PythonFMU3:
pythonfmu3 build -f takeoff_fmu.fmu
Configuration file
Now we add one actor to the configuration file. The AeroSim component configuration has the following setup:
Set the type field set as airplane and the usd field set as generic_aircraft.usd. In the fmu_models field add a list item with id as takeoff_fmu and fmu_model_path set as fmu/takeoff_fmu.fmu. Add an item to the component_output_topics list with "msg_type": "vehicle_state" and "topic": "aerosim.actor1.vehicle_state".
{
"description": "Takeoff tutorial.",
"clock": {
"step_size_ms": 20,
"pace_1x_scale": true
},
"orchestrator": {
"sync_topics": [
{
"topic": "aerosim.actor1.vehicle_state",
"interval_ms": 20
}
]
},
"world": {
"update_interval_ms": 20,
"origin": {
"latitude": 41.293222,
"longitude": 2.067261,
"altitude": 51
},
"weather": {
"preset": "Cloudy"
},
"actors": [
{
"actor_name": "actor1",
"actor_asset": "vehicles/generic_airplane/generic_airplane",
"parent": "",
"description": "Generic aircraft model",
"transform": {
"position": [0.0, 0.0, 0.0],
"rotation": [0.0, 0.0, 66.5],
"scale": [1.0, 1.0, 1.0]
},
"state": {
"msg_type": "aerosim::types::VehicleState",
"topic": "aerosim.actor1.vehicle_state"
},
"effectors": [
{
"id": "propeller_front",
"relative_path": "generic_airplane/propeller",
"transform": {
"translation": [0.0, 0.0, 0.0],
"rotation": [0.0, 0.0, 0.0],
"scale": [1.0, 1.0, 1.0]
},
"state": {
"msg_type": "aerosim::types::EffectorState",
"topic": "aerosim.actor1.propeller.effector_state"
}
}
]
}
],
"sensors": [
{
"sensor_name": "rgb_camera_0",
"type": "sensors/cameras/rgb_camera",
"parent": "actor1",
"transform": {
"translation": [-20.0, 0.0, -5.0],
"rotation": [0.0, -10.0, 0.0]
},
"parameters": {
"resolution": [1920, 1080],
"tick_rate": 0.02,
"frame_rate": 30,
"fov": 90,
"near_clip": 0.1,
"far_clip": 1000.0,
"capture_enabled": false
}
}
]
},
"renderers": [
{
"renderer_id": "0",
"role": "primary",
"sensors": ["rgb_camera_0"],
"viewport_config": {
"active_camera": "rgb_camera_0"
}
}
],
"fmu_models": [
{
"id": "takeoff_fmu",
"fmu_model_path": "fmu/takeoff_fmu.fmu",
"component_input_topics": [],
"component_output_topics": [
{
"msg_type": "vehicle_state",
"topic": "aerosim.actor1.vehicle_state"
}
],
"fmu_aux_input_mapping": {},
"fmu_aux_output_mapping": {},
"fmu_initial_vals": {
"orig_lat": 41.293222,
"orig_lon": 2.067261,
"init_heading": 67
}
}
]
}
Run the script
Now from the tutorials directory, run the Python script to execute the simulation:
source .venv/bin/activate
cd tutorials/
# Windows .\.venv\Scripts\activate
# Windows cd .\tutorials\
python run_takeoff_tutorial.py
